• 등급 3 OEM 220V 120 킬로그램 LPG 가스 용기 충전기
  • 등급 3 OEM 220V 120 킬로그램 LPG 가스 용기 충전기
  • 등급 3 OEM 220V 120 킬로그램 LPG 가스 용기 충전기
등급 3 OEM 220V 120 킬로그램 LPG 가스 용기 충전기

등급 3 OEM 220V 120 킬로그램 LPG 가스 용기 충전기

제품 상세 정보:

원래 장소: 중국
브랜드 이름: Xiangkang
인증: ATEX, CNEX, ISO9001
모델 번호: S-TCS-YG-SV

결제 및 배송 조건:

최소 주문 수량: 1개 세트
가격: Negotiable
포장 세부 사항: 표준 카톤 팩, 4 카튼에서 싸여진 각각 세트
배달 시간: 5-8 작업 일수
지불 조건: L/C (신용장), 전신환, 웨스턴 유니온
공급 능력: 달 당 1000000 세트
최고의 가격 접촉

상세 정보

상품 이름: LPG 충전기 산업용 가스 정격 전력 &Frequency: 220V 50/60Hz
사단: 50g 이용 가능한 인더스트리얼: 에너지와 마이닝, 산업용 가스
정확도: 종류 3 압력: 0~1.6Mpa
방폭 등급: 전 ib IICT4 Gb 보증: 12개월
민. 칭량: 2 킬로그램 최대. 무게를 달기: 120KG와 180KG
하이 라이트:

등급 3 실린더 충전기

,

120개 킬로그램 lpg 실린더 충전기

,

OEM LPG 가스 용기 충전기

제품 설명

등급 3 OEM 220V 120 킬로그램 LPG 가스 용기 충전기


Product Description



Function of LPG cylinder filling machine

  • Super-bright digital tube display;

  • The total weight of filling and automatic filling peeling can be set;

  • Refuse to install when lower than the empty cylinder lower limit, Limit to install when meet the upper limit function to prevent acidental over loading, sound and light tips when finished filling;

  • Equipped with a operation function, the operator can enter employee ID password to filling;

  • Respectively accumulate, store different filling amount, filling cylinders, total weight and the amount of liquefied petroleum gas.



In LPG filling stations or plants, the LPG needs to weight, cylinders need to tracking....There are the requirements to make it clearer and easier to manage.An automatic filling scale is an important part of many industrial weighing applications. Such cyilnders need to be accurated filled, or emptied the liquefied gases...



Choosing a filling machine can be a very simple task. You could easily be able to find a filling machine that fits you by narrowing down your choices depending on what you want to be filled.Our LPG cylinder management system is designed specially to solve the problems according in smart & effective way, also low cost.



It can help you develop an industrial weighing system for your filling operation that streamlines your workflow, delivers a fast and efficient measurement, and feeds data into any organization or record system you need. Our scales interface with a wide range of technology, and we can provide whatever digital or analog data your filling station requires. We can help you reproduce a formula with mechanical precision, and help you weed extraneous costs out of your production line.



Here is the details about one hardware----LPG filling scale for the tracking system:





Performance parameters

Module S-TCS-YG-SV-180
Accuracy III
Min. & Max. weighing 2KG-120KG
Certificates CNEX, ATEX, ISO9001
Div. 50g
Operating pressure 0~1.6Mpa
Suitable gas LPG
Ex-proof Ex ib IICT4 Gb
Power Supply 220V
Rated Frequency 50/60Hz






Interlocking Scanning Filling Process





Don't know how to use the filing scale, do not worry.

Here are the process of filling bellow for clearer idea, very simple to operate according the steps:



1. Place the cylinder on the empty scale platform and scan the cylinder barcode(press the scan key, and the laser line will be aligned with barcode symbol)

등급 3 OEM 220V 120 킬로그램 LPG 가스 용기 충전기 0



2. Open the valve(pressure handle) and start filling



등급 3 OEM 220V 120 킬로그램 LPG 가스 용기 충전기 1



3. After filling, the data will be transmitted into software system. Automatically cut off of the arrivak quantity and wirelss transmission of data. Through the software, the daily filling data and files can be statistically summarized.



4. The software system updates in real time and uploads the filling data to the network platform.

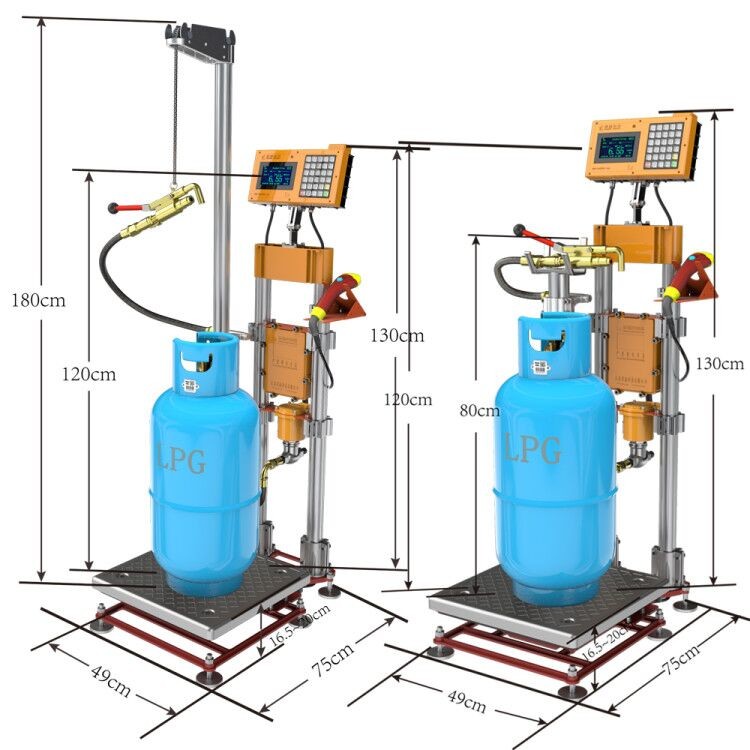

Product Details Show

Detailed spare parts of LPG filling scale, including:

Soldenoid valve, power box, hanging barrel, tools, display, LPG pipes, cable pipes, support rod,

scale platform, scanner and holder, seals

등급 3 OEM 220V 120 킬로그램 LPG 가스 용기 충전기 2



Products Application



Application in Industial Gas:

등급 3 OEM 220V 120 킬로그램 LPG 가스 용기 충전기 3



Products Advantages





Advantages

1.

Quantitative filling

2.

Automatic cut off

3.

Intrinsically safe explosion proof, safe and reliable

4.

One key setting

5.

Easy and convenient

6.

Friendly Keyboard

7.

One key operation

8.

Large screen OLED display



Our Cooperators
등급 3 OEM 220V 120 킬로그램 LPG 가스 용기 충전기 4



FAQ:

Q1: Are you manufacturer?
A: Yes. We are manufacturing and exporting experience since 2002. We are proud to be the leader in this industry in China.



Q2: What is the MOQ?

1 set



Q3: How is your warranty?
A: 12 months trouble-free warranty. During warranty period, electric parts are covered with warranty. Users send back defective

parts and we send the new one for replacement. Warranty can be up to 3 years if you apply for the warranty extending plan.

For more information, please feel free to contact our sales people.



Q4: How is your technical support?
A: We provide 12 months trouble-free warranty and lifetime online support through Whatsapp/ Skype/ Wechat/ Email /

Remote Assistant- Teamviewer.
